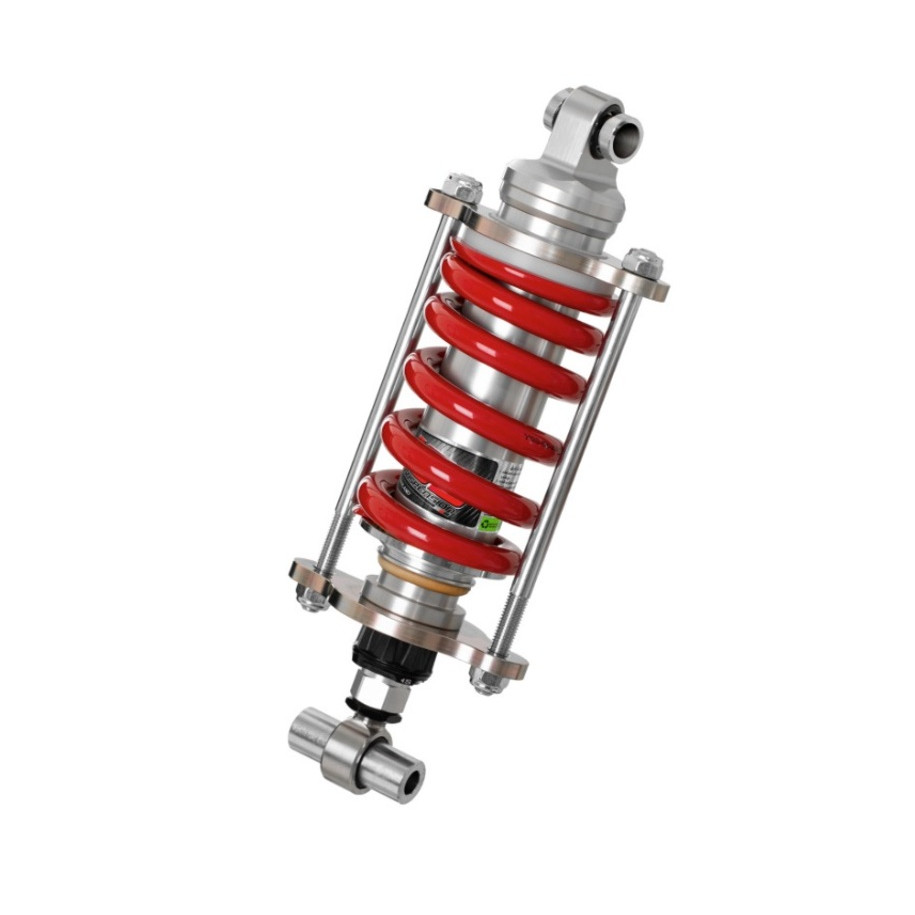

Amortisseur arrière YSS Mono

The shock absorber features a precisely machined aluminum body and is adjustable in both spring preload and rebound damping (30 clicks).
The spring preload is locked in place using a set screw, and the damper length can be adjusted by up to +10 mm.
The necessary adjustment tool is included in the package.

Technical Specifications:

• Type: Gas pressure
• Top Mounting: Eye
• Inner Diameter (Top): 16 mm
• Length: 310 mm
• Bottom Mounting: Eye
• Inner Diameter (Bottom): 12 mm

Adjustment Options:

• Stepless spring preload
• Length adjustment (+10 mm)
• Rebound damping

Additional Information:

• Spring Color: Red
• Spring Rate: 200
• Spring Length: 150 mm
• Spring Diameter: 56 mm
• Reservoir: No
• Manufacturer: YSS
• Piston Diameter: 45 mm
• Piston Rod Diameter: 16 mm
